4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls

Productdetails

Plaats van herkomst: Guangdong, China

Merknaam: Bitvisus

Betaling en verzendvoorwaarden

Min. bestelaantal: 1

Prijs: $468-643

Krijg Beste Prijs

Productdetails

Productbeschrijving

Productdetails

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                            4K60Hz Video Wall Controller, Seamless Switching Video Wall Controller, Multi-Window Control HDMI Video Processor


Materiaal:	Metaal	Invoerinterface:	HDMI 2.0x4,DP 1.2x2
Invoerresolutie:	4096x2160@60Hz	Kleurdiepte invoeren:	24bit
Uitvoerinterface:	HDMI 1.3X9 (≤15m),HDMI 2.0X1	Uitvoerresolutie:	1920X1080@60Hz/1920X1200@60Hz
Controlemethoden:	Infrarood, RS232, TCP/IP	Afmetingen verpakking:	540 mm x 290 mm x 110 mm
Gewicht pakket:	3,7 kg	Splitsingsmodussen:	16
Ondersteuning voor rotatie:	90° 180° 270°	Kleur aanpassing:	Verzadiging, gamma
Audio-uitvoer:	3.5mm-audiopoort	Voeding:	12V/5A
Pixelformaat:	RGB444

Materiaal:	Metaal
Invoerinterface:	HDMI 2.0x4,DP 1.2x2
Invoerresolutie:	4096x2160@60Hz
Kleurdiepte invoeren:	24bit
Uitvoerinterface:	HDMI 1.3X9 (≤15m),HDMI 2.0X1
Uitvoerresolutie:	1920X1080@60Hz/1920X1200@60Hz
Controlemethoden:	Infrarood, RS232, TCP/IP
Afmetingen verpakking:	540 mm x 290 mm x 110 mm
Gewicht pakket:	3,7 kg
Splitsingsmodussen:	16
Ondersteuning voor rotatie:	90° 180° 270°
Kleur aanpassing:	Verzadiging, gamma
Audio-uitvoer:	3.5mm-audiopoort
Voeding:	12V/5A
Pixelformaat:	RGB444

Productbeschrijving

Factory Direct 4K60Hz 3×3 HDMI IP Processor

Professional Video Wall Controller for Ultra-Large Screen Walls

Advanced video wall processor supporting seamless switching, multi-window control, and flexible display configurations for professional applications.

Key Features

Supports 4 channels of 4K×2K@60Hz input with EDID management
Multi-window control with POP tile mode, PIP overlay, arbitrary picture overlay, roaming, cross-screen, and zoom functions
Flexible control options: infrared remote, RS232 serial port, TCP/IP, and software control
One-key signal source switching with seamless real-time transition
16 splicing modes including horizontal and vertical screen configurations
Input rotation support (90°, 180°, 270°) and 180° output rotation
Image adjustment functions for color, saturation, and other parameters
Full channel 24-bit color depth with RGB444 pixel format
Audio separation (3.5mm audio port) with audio follow-out capability
Screen freezing and mirroring functions with gamma mode and panel support
Signal cropping function to remove black edges and enable local amplification
Desktop or wall mounting options available
Compatible with proprietary window software for advanced multi-window functionality

Typical Applications

Ideal for ultra-high-definition video surveillance, ultra-large screen walls, large advertising displays in retail environments, exhibition screens, and various industrial applications.

Contact Our Team

Welcome to consult about your project requirements and custom functionality needs!

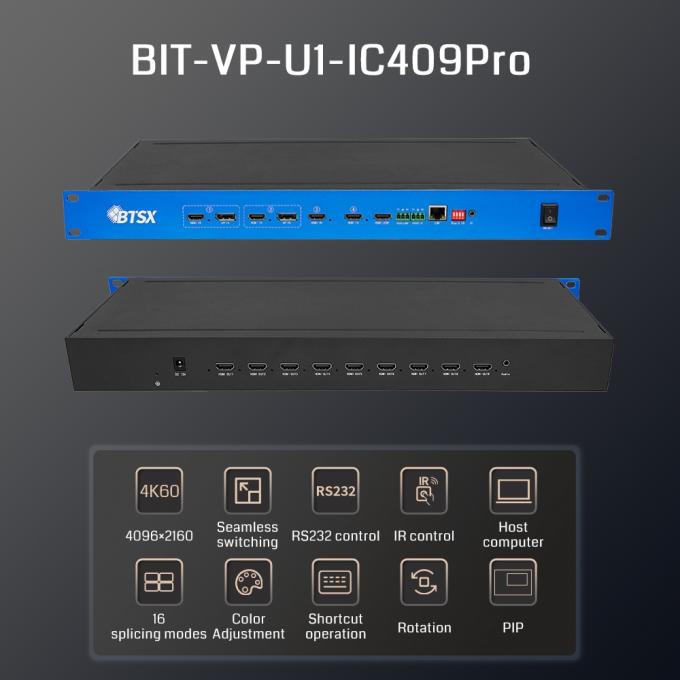

4K60Hz 3×3 Video Wall Controller front view

Technical Specifications

Product Name	3×3 4K60 LED/LCD Video Wall Controller Switcher
Product Features	EDID management, seamless switching, signal cropping, hot swapping, power-off memory, host computer readback, plan saving, input/output rotation, multi-window control, image adjustment, multiple control methods, audio follow-out, audio separation
Input Interfaces	HDMI 2.0×4 (HDCP 2.2), DP 1.2×2
Output Interfaces	HDMI 1.3×9 (≤15m), HDMI 2.0×1 (ring out)
Certifications	CE, FCC, ROHS
Resolution	4096×2160@60Hz
Included Accessories	12V/5A power supply, IR receiver, remote control, certificate, warranty card, USB to RS232 serial cable (optional)
Support Services	ODM, OEM
Warranty	3 Years
